X-CL25 Clips for X-CS25 Architectural Panel Subframing
Use X-CL25 back clips with our X-CS25 subframing system to hang vertical or concealed architectural panels on a horizontal rail. Use leveling clips to adjust a panel’s horizontal plane.
Our non-leveling and leveling clips are designed for use with either SFS Intec TUF-S rivets (for high pressure laminate (HPL) panels or Fischer Anchoring FZP expansion anchors (for fiber cement panels).
Four Clip Designs
- X-CL25-FZP for X-CS25 system using Fischer anchors
- X-CL25-TUF-S for X-CS25 system using SFS TUF-S anchors
- X-CL25-L-FZP leveling clips for X-CS25 system using Fischer anchors
- X-CL25-L-TUF-S leveling clips for X-CS25 system using SFS TUF-S anchors
Mounting Type
Horizontal
Fastening Type
Concealed
System Depth
1 1/2 inch
Cladding Leveling
- X-CL25-L-FZP – Leveling Clip
- X-CL25-L-TUF-S – Leveling Clip
Product Material
6063-T5 Aluminum
Recommended Panel Types
- High Pressure Laminate (HPL) panels: use SFS TUF-S anchors
- Fiber Cement Panels: use Fischer anchors
Dimensions:
- X-CL25-FZP: 1 inch x 2 inch wide; 1 fastener hole for a Fischer anchor
- X-CL25-L-FZP: 1 inch x 2 inch wide; 1 fastener hole for a Fischer anchor
- X-CL25-TUF-S: 1 inch x 2 inch wide; 2 fastener holes for TUF-S
- X-CL25-L-TUF-S: 1 inch x 2 inch wide; 2 fastener holes for TUF-S
Finish
Mill Finish
Data Sheets: X-CL25-FZP/L X-CL25-L-TUF/L
CAD: X-CL25
X-CL25 Clip Images
X-CL25-FZP Clip
X-CL25-TUF-S Clip
X-CL25-L-FZP Clip
X-CL25L-TUF-S Clip

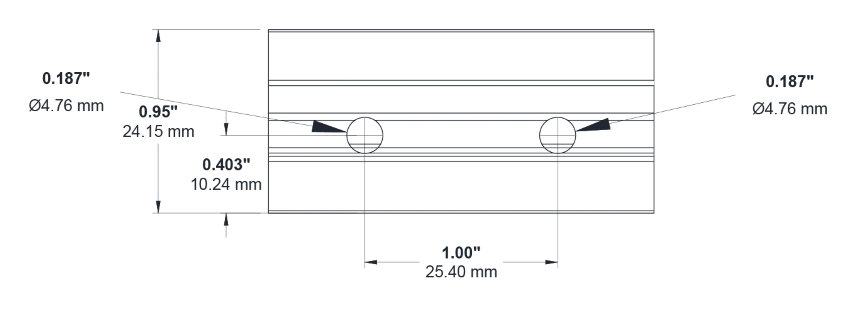

X-CL25 Leveling Clip – Top

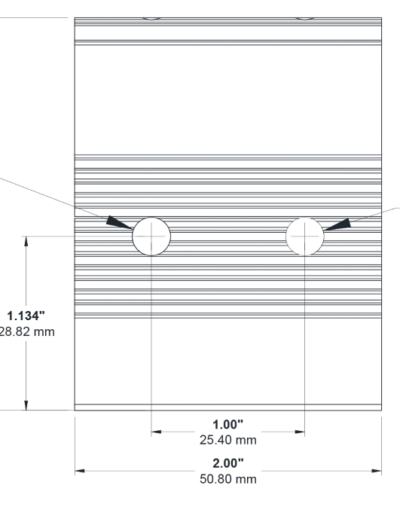

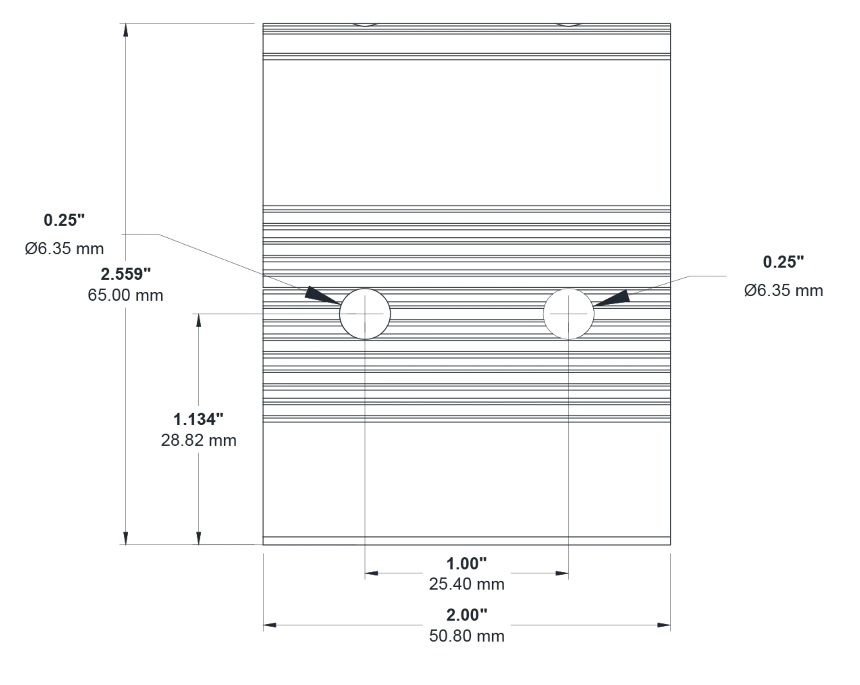

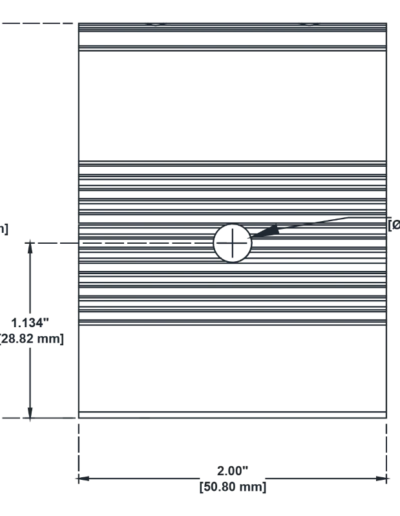

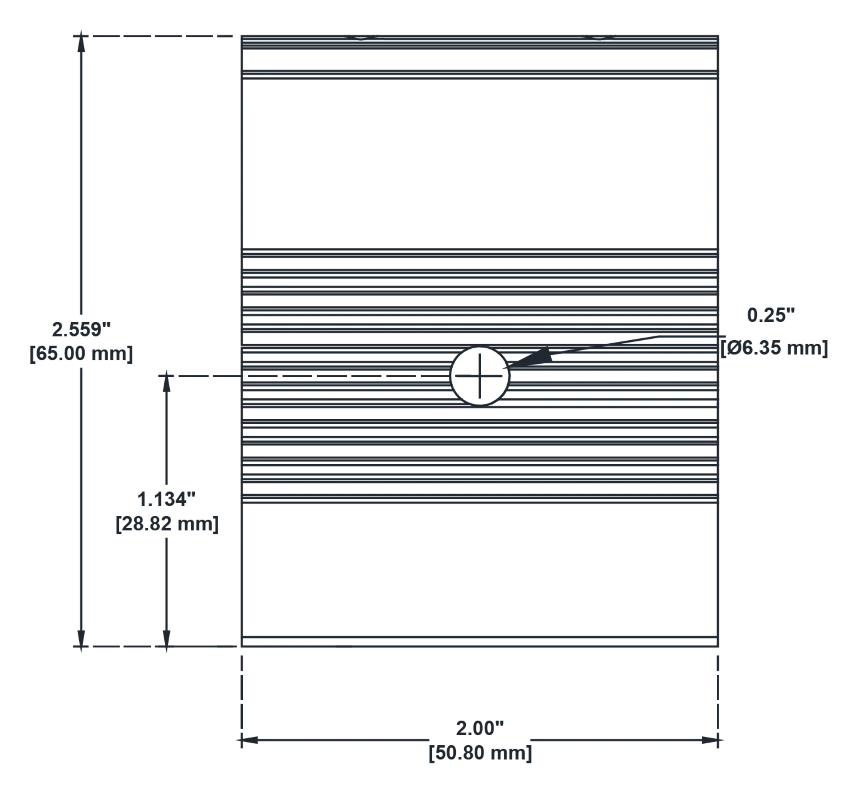

X-CL25-FZP-S – Back
