Subframing Component: Thermal Break Pads for X-H19PF and X-Z19PF
Thermal break pads “thermally break” the rainscreen from the building to reduce the thermal transfer into the building. These thermal break pads snap onto X-H19PF and X-Z19PF 3/4 inch (19mm) perforated Zee and Hat profiles.
Four Thermal Break Pad Sizes
- X-TB6: 1/4 inch (6 mm)

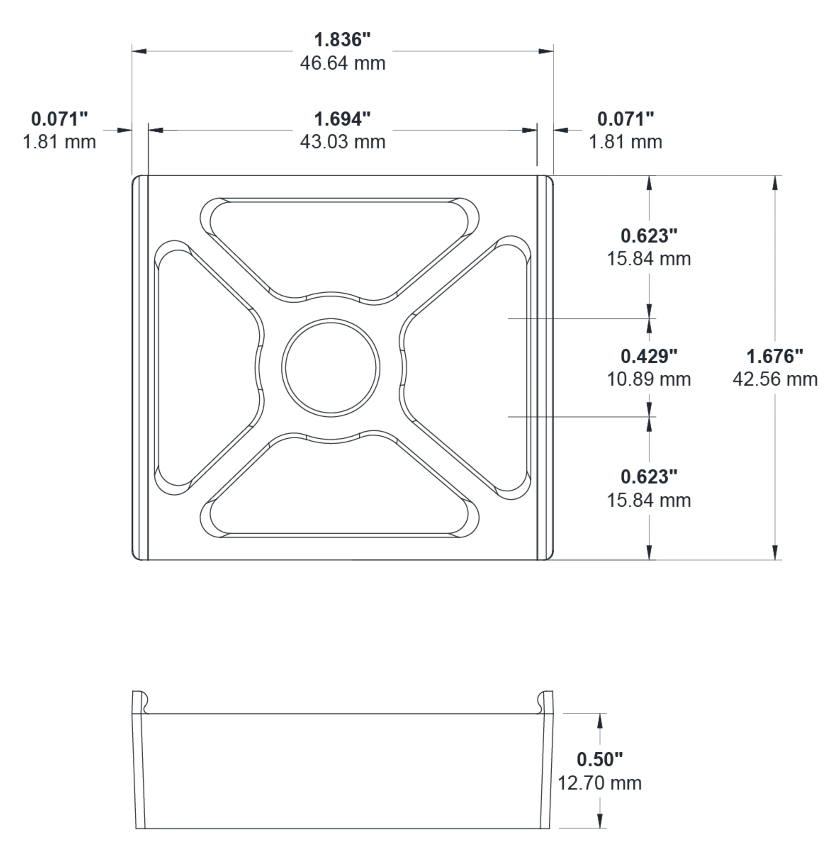

- X-TB12: 1/2 inch (12 mm)

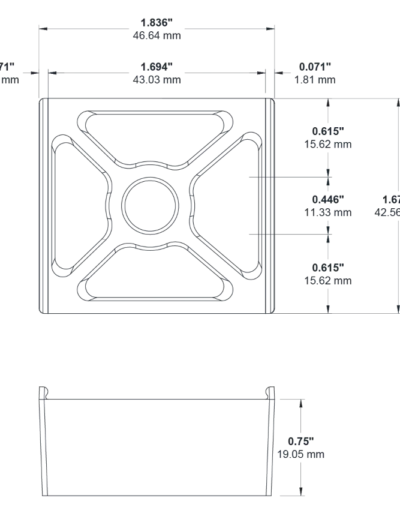

- X-TB19: 3/4 inch (19 mm)

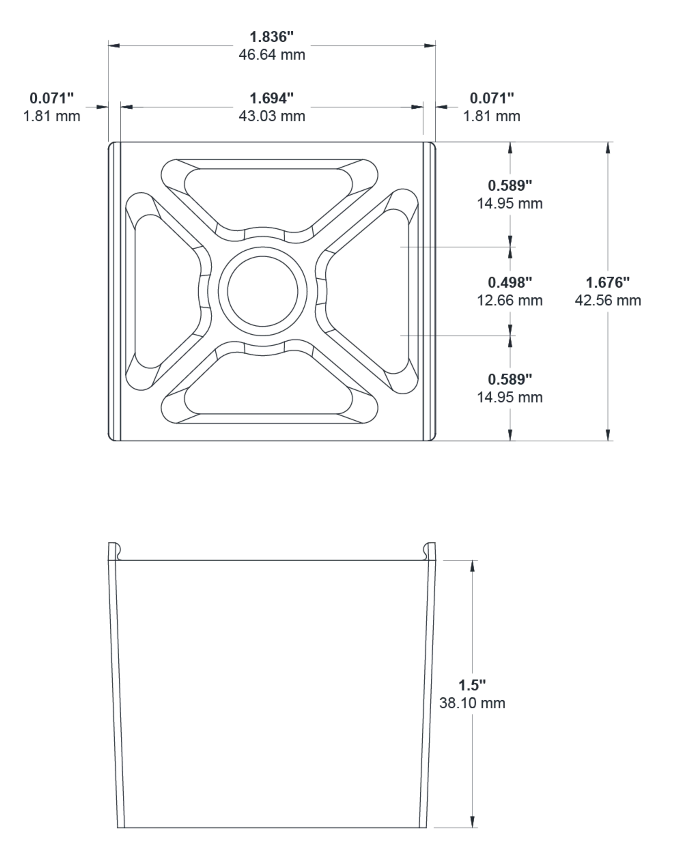

- X-TB38: 1 1/2 inches (38 mm)
Mounting Type
Snap-fit to X-Z19 or X-H19
Fastening Type
Exposed or Concealed
Depth
- X-TB6: 1/4 inch (6 mm)
- X-TB12: 1/2 inch (12 mm)
- X-TB19: 3/4 inch (19 mm)
- X-TB38: 1 1/2 inches (38 mm)
Cladding Leveling
NA
Thermally Broken
Yes
Product Material
Polypropylene
Recommended Panel Types
- Fiber cement panels
- High Pressure Laminate (HPL) panels
- Fiber concrete (ultra high performance concrete)
- Composite stone (Steni and Petrarch brands)
Punched 4 inches on Center
No
Finish
Mill finish
Thermal Break Pad Images
X-TB6
X-TB12
X-TB19
