Xkelex Vertical Profiles for Panel Substructure
These Xkelex-designed 1 inch (25 mm) profiles will help you achieve exposed and concealed vertical rainscreen installations.
Six Profile Designs
- X-H25: 1 inch (25 mm) Hat Profile
- X-H25-LW: 1 inch Hat Profile Long Wing
- X-J25: 1 inch J Profile
- X-Z25: 1 inch Zee Profile
- X-L50: 2 inch L Profile for BK Bracket Systems
- X-Z50: 2 inch Z Profile for BK Bracket Systems
Mounting Type
Vertical
Fastening Type
Exposed or Concealed
Depth
- X-H25: 1 inch
- X-H25-LW: 1 inch
- X-J25: 1 inch
- X-Z25: 1 inch
- X-L50: 2 inch
Cladding Leveling
NA
Thermally Broken
No
Product Material
6063-T5 Aluminum
Recommended Panel Types
- Fiber cement panels
- High Pressure Laminate (HPL) panels
- Fiber concrete (ultra high performance concrete)
- Composite stone (Steni and Petrarch brands)
Dimensions
Profiles are 120 inches (12 feet) long. Custom lengths are available.
- X-H25: 1 inch x 4 1/2 inches x 120 inches
- X-H25-LW: 1 inch x 5 3/10 inches x 120 inches
- X-J25: 1 inch x 3 inches x 120 inches
- X-Z25: 1 inch x 3 inches x 120 inches
- X-L50: 2 inches x 1 5/8 inches x 120 inches
- X-Z50: 2 inches x 4 1/2 inches x 120 inches
-
Punched 4 inches on Center
- X-H25: Yes
- X-H25-LW: Yes
- X-J25: Yes
- X-Z25: Yes
- X-L50: No
- X-Z50: No
Finish
Black Powder Coating
Data Sheets: X-H25 X-H25-LW X-J25 X-Z25 X-L50 X-T50
CAD: X-H25 X-H25-LW X-J25 X-Z25 X-L50 X-T50
Profile Images
X-H25 Profile
X-H25-LW Profile

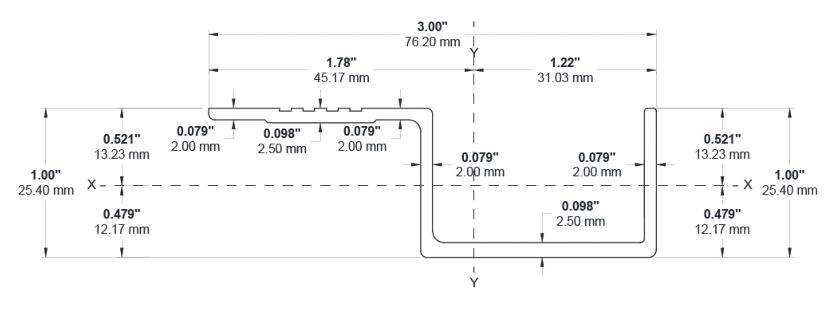

X-J25 Profile
X-Z25 Profile

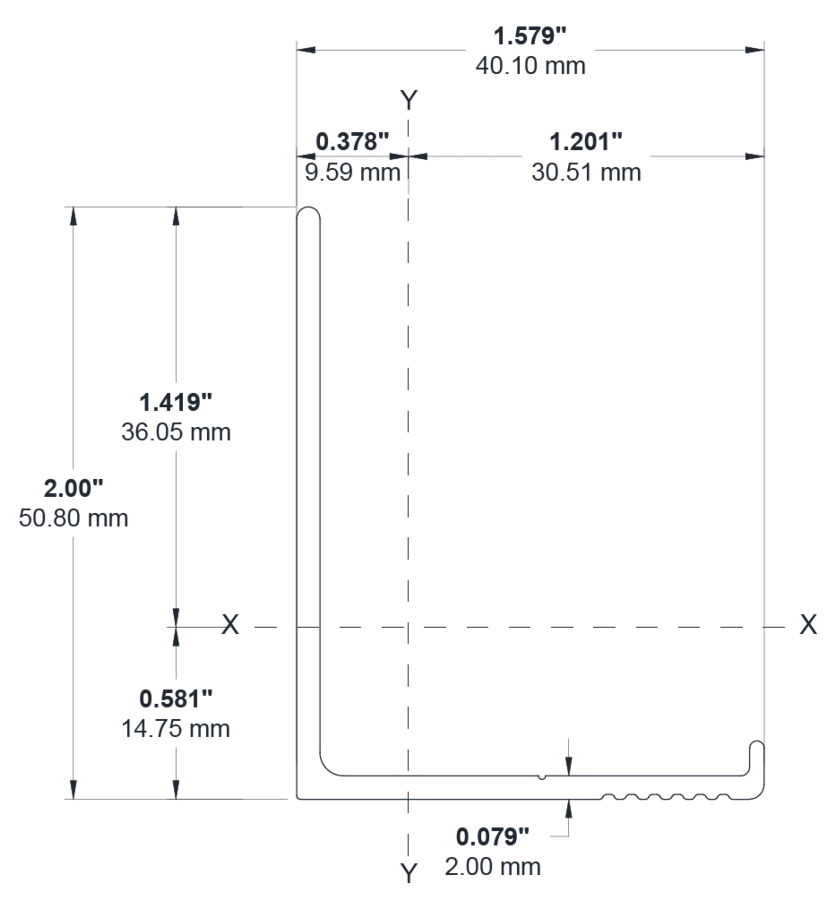

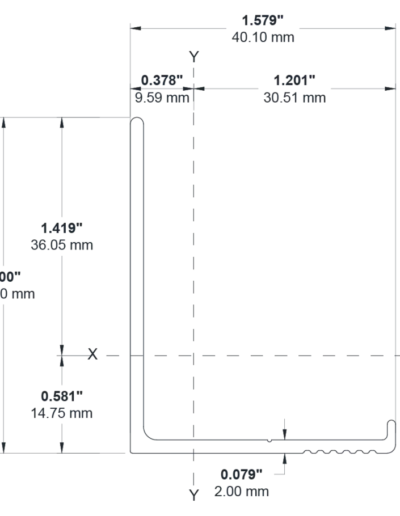

X-L50 Profile
